Lazer merkezlemeli yerleştirme otomasyonu

Fritsch GmbH placeAll 610

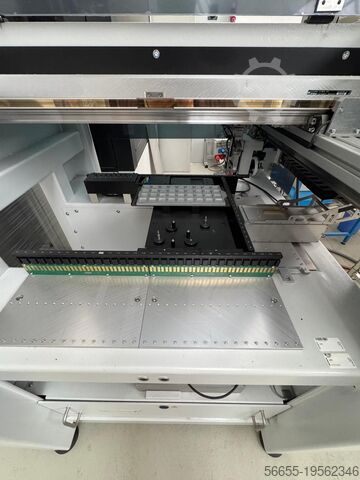

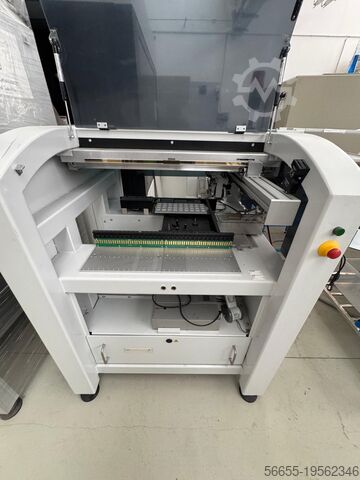

For sale is an SMD placement machine from Fritsch GmbH, type placeALL 610, equipped with a placement head featuring laser centering.

The machine is fully functional and ready for operation after programming.

Technical data:
Type: placeALL 610
Year of manufacture: 2014
Placement speed: 600 CPH
Chip sizes: 0402 chips up to 22x22 mm (alternatively up to 32x32 mm)
Laser centering: contactless 'on-the-fly'
Slots: 108
Feeder positions: 208 for 8 mm tapes
Placement table: 520x370 mm
Placement area: 620x450 mm
Tool: 5 x standard
Additionally:
Camera system: Vision-System II + lighting
Dispensing system: CD-05 placement tool & blow-off function
Frame adjustment; access for robot arm from the left
Universal CAD import
Barcode reader for ID barcodes
Camera attachment for LM-SM-FP systems
and more.

Feeders:
- 2 feed racks with 16 slots each
for tape/tube FEEDER
front and rear side of PA610

- 1 feed rack with 22 slots
Crjdpfx Adswy U Nmj Ash
for tape/tube FEEDER,
left and right side of PA610/L

- 20 tape FEEDER 8mm
Max. tape thickness: 1.1mm
Max. tape height: 6.0mm
Max. tape width: 8.3mm
Max. reel width: 17.5mm
Slots: 1
Can be equipped via barcode.

- 4 tape FEEDER 12mm
Max. tape thickness: 1.4mm
Max. tape height: 6.0mm
Max. tape width: 12.3mm
Max. reel width: 17.5mm
Slots: 1
Can be equipped via barcode.

- 2 tape FEEDER 16mm
Max. tape thickness: 1.4mm
Max. tape height: 13.0mm
Max. tape width: 16.3mm
Max. reel width: 30.5mm
Slots: 2
Can be equipped via barcode.
Including feeder extension 908.120.007

- 1 tape FEEDER 24mm
Max. tape thickness: 1.4mm
Max. tape height: 13.0mm
Max. tape width: 24.3mm
Max. reel width: 30.5mm
Slots: 2
Can be equipped via barcode.
Including feeder extension 908.120.007

- 1 vibration tube FEEDER
Handles max. 10*SO tubes
Slots: 5
Can be equipped via barcode

- 1 feeder setup station with software
For setup and full creation of a component
Connection to PC via RS232
PC not included.

- 1 special PA
Wire feeder for feeding and cutting wire pins
Including placement tool

- 5 tape feeders TF 943
Cassette for 8 mm reel, width 11 mm

Transport and loading can be organized at an additional cost, Europe-wide, upon request.

All prices plus VAT

Inspection by appointment possible. Please contact us – our team looks forward to assisting you.
Trade-in or exchange possible!
