Yüzey taşlama makinesi

CHEVALIER FSG-1224ADIV

Condition: new
Year of manufacture: 2024
Stock number: 5549
Delivery time: immediate, subject to prior sale
Country of origin: Taiwan
Price: €60,110
Leasing rate: €1,136.08
Bestseller: 1
In stock: 1
Grinding length: 610 mm
Distance spindle to table: 610 mm
Table size: 600 x 300 mm
Magnetic chuck: 300 x 600 mm
Table movement, hydraulic: 650 mm
Table movement, manual: 700 mm
Table speed: 5 - 25 m/min
Cross feed: 0 - 2,250 mm/min
Cross feed increment: 3 - 32 (0.001) mm
Max. cross travel: 320 mm
Spindle motor: 5.5 kW
Hydraulic motor: 0.74 kW
Cross feed motor: 1 kW
Grinding wheel feed motor: 1 kW
Length: 2,950 mm
Width: 1,490 mm
Height: 2,080 mm
Weight: 2,200 kg
Grinding wheel dimensions: 355 x 50 x 127 mm
Spindle speed: 1,450 rpm
Fine feed per graduation: 0.001 mm

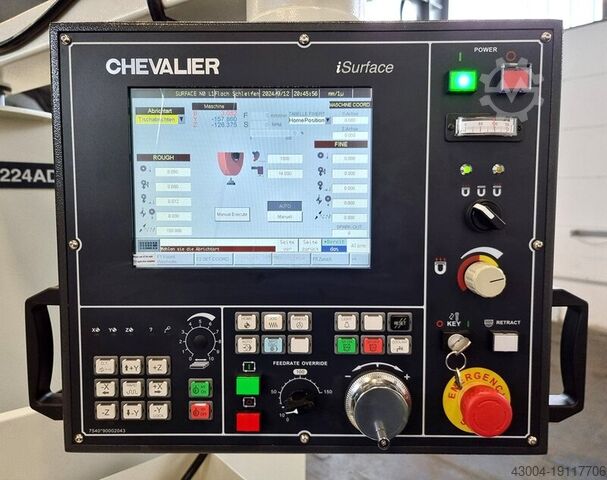

10.4" iSurface graphical NC control on swing arm with touchscreen for:
- Selection of operating mode
- Cycle selection and program creation
- Surface grinding
- Creep feed grinding
- Plunge grinding
- Dressing with automatic compensation
- Semi-automatic balancing in the machine
- Automatic spindle speed for constant surface speed
- Visualization of spindle load
- Imbalance control
- Graphic status monitoring
- Alarm list
Nsdpowiqymofx Aafekt
- Automatic vertical feed
- Servo drive for grinding wheel infeed and table cross movement
- Hardened guideways on all 3 axes with needle bearings
- Electro-magnetic chuck
- Coolant system with automatic paper filter and magnetic separator
- Automatic dresser above the grinding wheel, with compensation
- Grinding wheel
- Grinding wheel flange
- Grinding wheel balancing device (roller type)
- Balancing arbor
- LED machine light
- Machine and equipment in accordance with CE regulations
- Operating manual in GERMAN and ENGLISH

OPTION:
Additional grinding wheel flange €200,--
