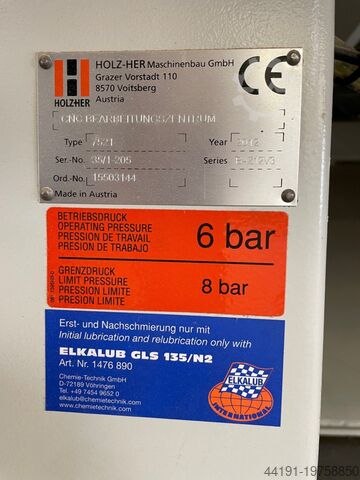

Holz-Her Dynestic 7521

Used Machine

Year of Manufacture: 2012

Base Machine - Dynestic 7521 20.6 Dynestic Table
For classic nesting operations with wear plate
Processing length: 6250 mm
(DYNESTIC 20.6 includes additional 4th stop in Y direction)
Machine frame in welded construction
with ground and hardened prism guides for gantry, aggregate head, and consoles
Gantry design
Helical rack and pinion drive in X and Y axes,
ball screw drive in Z axis for precise positioning
Technical Data:
Technical data relates to DYNESTIC 7521 - 20.6
Please refer to the associated data sheets.
Processing dimensions:
Max. workpiece size for contour routing
X = 6250 mm
Y = 2100 mm
Max. travel distances
X = 7360 mm
Y = 2720 mm
Z = 325 mm
Max. clearance height, DYNESTIC table
Z = 1st stage 318 mm / 2nd stage 418 mm
from table top (without tool, without holder)
Maximum programmable speed
Vector speed: 128.0 m/min
X = 80 m/min, Y = 100 m/min, Z = 25 m/min
4-stage extraction hood
with pneumatic height adjustment and inspection window
Voltage: 400 V, 50/60 Hz
CONTROL:

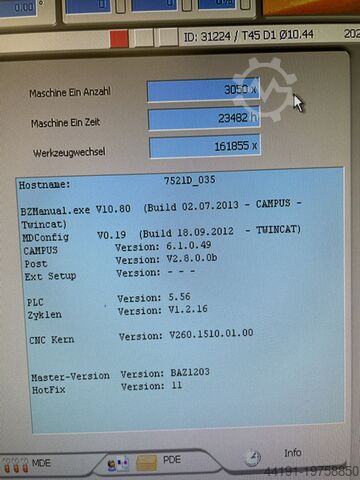

Dual-core processor
Operating system: Windows XP
80 GB hard drive / 1 GB RAM
RJ45 network connection 10/100 Base-T Fast Ethernet
US keyboard and Microsoft IntelliEye Mouse (optical)
CD-ROM / CD-RW drive (CD burner)
Remote maintenance
Integrated network card for data transfer of control and program data.
Data transfer via high-speed internet connection
Requirement: High-speed internet connection at the machine.
DYNESTIC Table
Solid, continuous processing table with grid division,
continuous slots in X and Y direction,
slot spacing 50 mm
with 25 meters of sealing cord for clamping the wear plate
1 processing field with stop rails/stops
Height 30 mm, pneumatically lowerable
2 stop rails in Y-direction and 1 stop in X-direction (right)
(viewed from the front of the machine)
Vacuum zones
Single-circuit vacuum system
Drilling Head 7976, 24 spindles
Drive power 3.0 kW
18 vertical spindles can be selected individually
L-shaped arrangement, 10 in X and 8 in Y direction
32 mm pitch
Max. drill bit diameter: 35 mm
Total drill bit length: 70 mm from screw end (depending on panel thickness)
Spindle stroke: 70 mm
Direction of rotation: alternating clockwise/counterclockwise
n(max.) 1000 - 5710 rpm, infinitely variable
Chsdpfow I U Ecjx Ad Ajc
Mount: M10 thread, 11 mm fit
without tool, without holder
6 horizontal spindles
2 double drilling spindles in X direction
(Spacing 32 mm between first and second horizontal drilling spindle)
1 double drilling spindle in Y direction
Mount: M10 thread, 11 mm fit
Max. drill bit length: 70 mm from screw end
without tool, without holder
Free position 1 for:
Optional double drilling spindle in X direction
or
Vertical adapter with double feed force
Free position 2 for:
Optional saw in X direction
or
Vertical adapter with double feed force

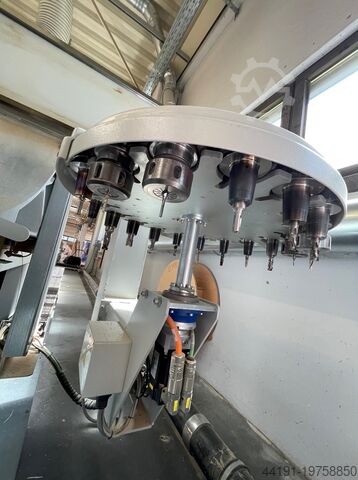

Milling Unit 7831, 2-stage
Power: 11.0 kW (S6)
n(max.) = 1000 - 24000 rpm, infinitely variable, two-stage feed stroke
max. power at 12000 rpm up to 24000 rpm
air-cooled
with HSK-F 63 tool holder
with right-h
