CNC işleme merkezi pencere ve kapılar

HOMAG BMB 922/35/13/B_Video

max. workpiece length 6,000 mm
Milling spindles: 2 units
Main motor: 18.5 kW
Very well-maintained CNC machining centre Homag Profi BMB 922/35/13/B with automatic loading and unloading

Designed for processing wooden scantlings for windows, frame doors or similar workpieces made of wood or wood-like materials.
Detailed description available in the attached PDF file!

HIGHLIGHTS:
- Workpiece length up to 6,000 mm (with follow-up gripping); workpiece width up to 300 mm for individual parts, door leaves up to 1,300 mm on auxiliary traverses, workpiece thickness up to 150 mm
- Automatic loading and unloading of individual parts, buffer with 2 m depth
- Automatic positioning of clamping jaws, automatic reclamping, inner/outer profiling
- 2 high-power 4-axis spindles with HSK 63 F interface and C-axis
- C-axis extension for Flex5+ unit
- Fixed drilling head with 13 spindles (V9/H4): 9 individually selectable vertical drilling spindles and 2 double-ended horizontal drilling spindles, 1 each in X- and Y-direction
- Disc tool changer with 18 positions
- Chain tool changer with 72 positions
- Auxiliary console table for machining special shapes and curved arches, including various vacuum clamps and PowerCLamp clamps for the auxiliary table. With 'Mr. Beam' laser projection.
- Vacuum pump
- Chip conveyor belt
- Includes exchangeable units (saw aggregate, lock case unit, dowel drilling unit 3+1, drilling and milling unit with 4 spindles, FLEX 5 aggregate)

- OPTION: Window tooling:
• Wooden windows IV 67/77/89 – year 2011
• Entrance doors IV 67/77/89 – year 2011
• Lift-slide doors IV 67/77/89 – year 2011
• Wood-aluminium windows 67/77 – year 2018
• Wood-aluminium entrance doors 67/77 – year 2018

Machine can be inspected in operation until approx. October 2026!

Detailed technical description, window section drawings, and prices available upon request!

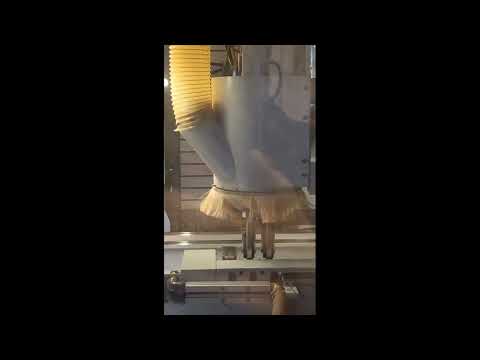

Current video of the machine attached:
Video sequences:
Lhedpfx Ajymf Eqog Sjc
Minute 0:00 - 2:08: complete machine view
Minute 2:08 - 12:21: window production of straight elements
Minute 12:21 - 14:45: special window production on additional table

(Technical data as per manufacturer - without guarantee!)
