Eksantrik pres – 16 ton pres kuvveti

Metal Technics Polska PRASA MIMOŚRODOWA MTP NACISK 16T

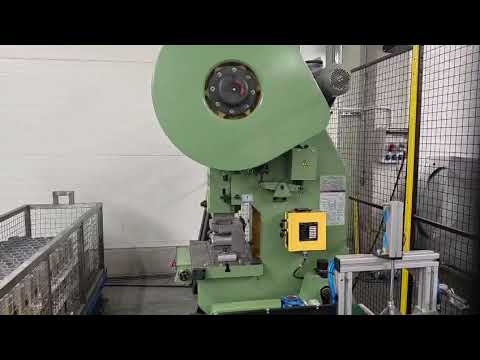

OPEN ECCENTRIC PRESS 16T

Professional eccentric press with a press force of 16 tons for punching, embossing, bending, and forming operations on metal parts. The open frame design provides easy access to the working area and ensures comfortable operation.

The robust and durable construction guarantees stable operation even under intensive industrial use. The machine is equipped with a dry pneumatic friction clutch and modern safety systems.

Main features:
• Open frame design
• Robust and durable construction
• Fixed worktable
• Cross-mounted crankshaft
• Horizontally mounted crankshaft
• Dry pneumatic friction clutch
• Stroke balancing device
• Safety valves
• Manual control
• High productivity

TECHNICAL DATA:
• Press force: 16 t
• Stroke under load: 2 mm
• Ram stroke: 0–70 mm
• Strokes per minute: 125 spm
• Maximum tool height: 170 mm
• Distance ram to frame: 170 mm
• Worktable size: 320 × 480 mm
• Table bore: Ø100 mm
• Opening dimensions: 160 × 240 × Ø210 mm
• Ram size: 180 × 200 mm
• Die fixture size: Ø40 × 60 mm
• Distance between columns: 220 mm
Nsdpeyrr E Iefx Aknswg
• Table thickness: 60 mm
• Maximum tilting angle: 25°
• Motor power: 1.5 kW
• Machine dimensions: 1150 × 900 × 1910 mm
• Weight: 1400 kg

Equipment:
• Light barriers
• Mechanical safety devices
• Ejector in lower table

Delivery terms:
• Delivery to customer possible
• Transport costs calculated individually
• Brand new machine
• 12-month warranty
• Warranty and post-warranty service
• CE Declaration of Conformity

Additional delivery information:
• Delivery throughout Europe possible
• Transport costs are calculated individually depending on place of delivery
• Rapid order processing
• Self-collection possible
• Machine securely packed for transport

Bu ilan otomatik olarak tercüme edildiğinden bazı çeviri hataları oluşmuş olabilir.
