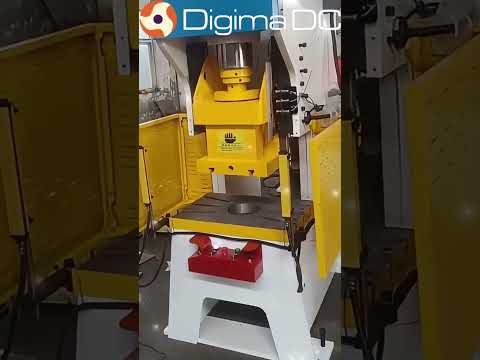

Digima YC27-200T Single-Column Press
Hydraulic C-frame press with a 200-ton capacity for metal forming.
The Digima YC27-200T is a modern, hydraulic single-column C-frame press designed for a wide range of metal forming processes. This machine is suitable for cutting, blanking, bending, light stamping, straightening shafts, and processing components requiring very high clamping forces.

The C-frame design provides convenient access to the work area from three sides, facilitating material handling, workpiece positioning, and tool changes. The welded steel frame ensures high rigidity, minimizes deformation under load, and supports process repeatability.

Key Advantages
Why choose the Digima YC27-200T press?
200-ton capacity — very high working force for blanking, bending, stamping, and straightening components.

C-frame design — access to the work area from three sides simplifies operation and tool changes.

Crjdoz Ari Tspfx Aqrei
Welded steel frame — high rigidity, reduced deformation, and stability under load.

Integrated valve block — compact hydraulic system design and rapid machine response.

Fully enclosed drive — increased work safety and easier machine maintenance.

Intuitive operation — lever-pedal system and control panel support comfortable operator use.

Applications
Where will the YC27 hydraulic press be useful?
The Digima YC27-200T single-column press is designed for use in production facilities, tool rooms, maintenance departments, and industrial workshops where high clamping forces, convenient workpiece positioning, and a repeatable work process are required.

Bending and forming — processing metal components using appropriate tooling.

Blanking and cutting — working with parts requiring high, controlled clamping force.

Light stamping — application in metal component forming processes.

Straightening shafts and components — correction of machine components and technical parts.

Tool rooms — assembly, fitting, testing, and servicing of production tools.

Industrial production — repetitive operations with stable and safe working conditions.

Technical Specifications:
Model: YC27-200T
Machine type: Hydraulic single-column C-frame press
Nominal capacity: 2000kN/200ton
Motor power: 18.5kW
Maximum system pressure: 25MPa
Stroke adjustment: 10-180mm
Maximum slide stroke: 180mm
Maximum mounting height / clearance: 80-380mm
Table height from the ground: 750mm
Slide dimensions: 770x580mm
Table opening: 250mm
Mounting hole: Ø70 mm
Throat depth / outreach: 400mm
Fast descent speed: 21 mm/s
Working speed: 8mm/s
Return speed: 140mm/s
External machine dimensions: 1800x2100x3600mm
Machine weight: approx. 14000kg
Type: Press
Brand: Digima
Condition: New
Main application: Cutting, blanking, bending, light stamping, straightening shafts and components.
