KEMPF SKM 36/3 SR-Membran Stahl Halbrundmulde 50m³

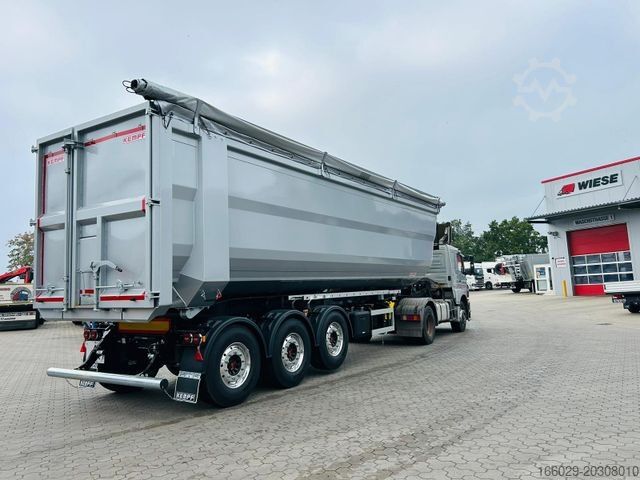

KEMPF 3-Axle Tipper Semi-Trailer SKM 36/3 SR-Membrane ? Steel Half-Pipe Body (50.4 m³) New vehicle
Availability: Expected February 2026

----Technical Data
Type: KEMPF SKM 36/3 SR-Membrane
* Design: 3-axle tipper semi-trailer with steel half-pipe body
* Permissible gross vehicle weight: 36,000 kg
* Axle load: 3 x 8,000 kg
* Fifth-wheel load: approx. 12,000 kg
* Load length: approx. 9,500 mm
* Load width: approx. 2,350 mm
* Body height: approx. 2,400 mm
* Body volume: approx. 50.4 m³
* Overall height: approx. 3,830 mm to loading edge (loaded)
* Nominal coupling height: approx. 1,200 mm (technically 1,200–1,260 mm)
----Body / Trough

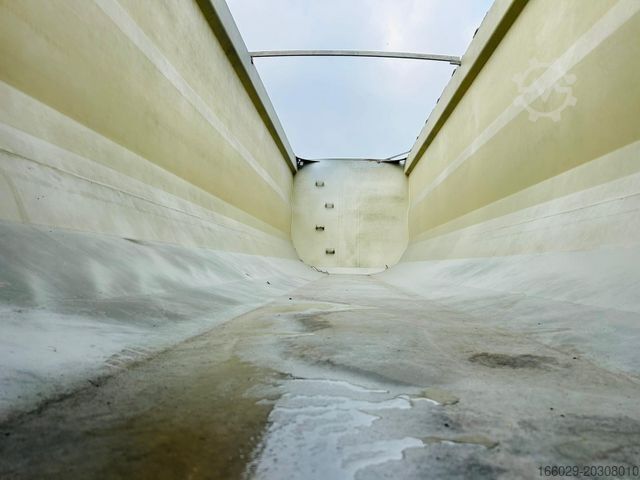

Steel half-pipe body in robust off-road design
* Material: high-wear-resistant HARDOX steel (HB 450 / HB 500)
* Floor: continuous 5 mm HARDOX steel, reinforced
* Sidewalls: 4 mm HARDOX steel
* Front wall: 20° sloped, 4 mm HARDOX steel
* Rear wall: 2-winged (1/3 left, 2/3 right), grain-tight, with pneumatic 2-hook locking and integrated slider (400 x 400 mm)
* Cover plate: removable, protects slider against dirt and damage
* Pneumatic vibrator: rear left, operated via switch
* Walkway with ladder and handrail according to UVV regulations
* Interior access via step system in the front wall
* Shovel and broom holders on the front wall
----Chassis and Superstructure
KEMPF welded construction from fine-grain steel, sandblasted and hot-dip galvanized
Hfodpfjxn Ebmsx Ad Rjn
* Off-road version, tapered design
* Chassis colour: Deep Black (RAL 9005)
* Body colour: White Aluminium (RAL 9006)
* Tarpaulin colour: Silver (Mehler 911)
* Attachments: hot-dip galvanized and black powder coated
* Robust and high-quality overall construction
----Axles, Tires, and Suspension
SAF INTRADISC plus Integral off-road axles with disc brakes (Ø 430 mm)
* Axle with automatic lift axle and forced lowering
* Tyres: 385/65 R 22.5 (brand per Kempf's choice)
* Rims: Alcoa Ultra ONE aluminum rims, Dura-Bright EVO
* Air suspension system with lift/lower control and quick release
* Load gauge with tonne display front left
* Chassis laser alignment (optimized tire wear and fuel consumption)
----Hydraulics and Tipping System
Front tipper cylinder Hyva, single-circuit hydraulic system (190–250 bar)
* Edbro 1" quick-release coupling, elevated
* Hard-chromed piston, robust design
----Braking and Safety Systems
Knorr EBS with RSP (Roll Stability Program)
* ABS, 4-channel (4S/2M) with stop light supply
* Tire pressure monitoring system according to ECE R141
* Trailer Info Module TIM G2 with brake wear indicator and diagnostic data
* Acoustic reversing warning system
* Folding underrun protection according to ECE R58.03 with spring assistance
----Lighting and Electrics
Complete LED lighting according to EU standard, ADR-compliant
* LED 3-chamber rear lights with chrome rings
* LED side markers with indicator function
* LED cargo area lighting, switch-operated
* LED reversing lights (2 additional side-mounted)
* LED fog light and license plate lighting
* Brake light
* 15-pin socket
----Accessories and Extras
Two PVC toolboxes (approx. 660 x 500 x 460 mm each)

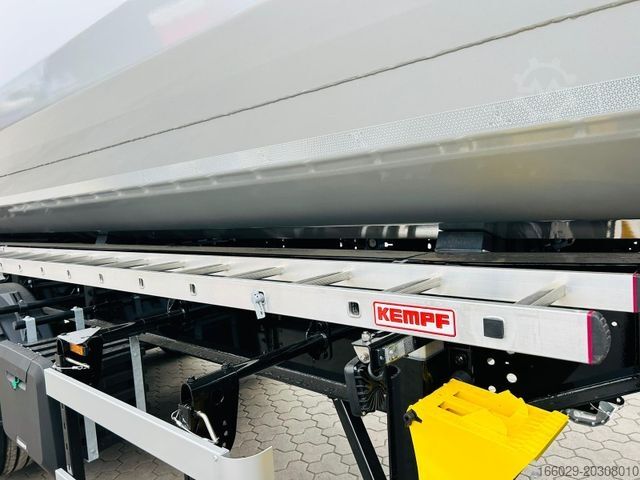

* Removable aluminum ladder (4 m) with holder
* Two plastic wheel chocks
* Symmetrical side underrun protection, both sides, according to EU requirement
* Foldable A-sign at end of chassis
* Large reflective plate (200 x 1,130 mm)
* Mudflaps with spray suppressor
* Two aluminum drop legs (24 t load capacity)
----Tarpaulin and Bows
Roll tarpaulin made of high-quality PVC (680 g/m²), color silver
* Central locking on the le
