Damperli yarı römork

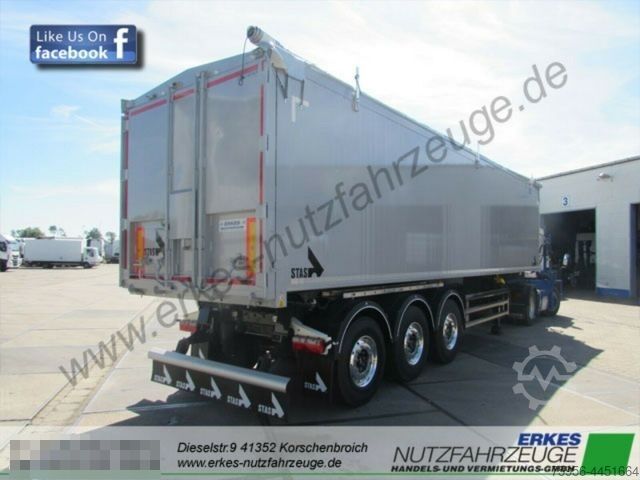

STAS AgrostarV 10 ca.56 m³ Neufahrzeug Universaltür

Chassis light version
In aluminium (15-6-12)
Two fully-automatically welded I-beam longitudinal members with welded cross members. Chassis width 1,600 mm

Cjdpfx Abofi Nmue Terh
Axles and Suspension 430 mm disc brakes
Jost (formerly Mercedes DCA) axle assemblies, 3 x 9 t with air suspension, centrally mounted air bellows aligned to the longitudinal beams, first axle liftable with starting aid and manual forced lowering, Smart Board Infocenter, raise-lower valve, BVA brake wear indicator

Tyres and Wheels
6 wheels with tyres size 385/65 R22.5 from leading manufacturers (manufacturer's choice), steel rims 11.75 x 22.5 ET 120

Landing Legs
Mechanical design, single-sided operation, 2-speed, pivoting foot for air suspension

Brake System
According to E.G. standards, dual-line Wabco system, spring-loaded parking brakes acting on two axles and Wabco EBS-E incl. RSS (Roll Stability System) and Premium Modulator, Wabco Smartboard Infocenter, aluminium air tank system

Electrical System
According to StVZO guidelines with 2 Aspöck Ecopoint 2 five-chamber lights, 24 Volt system with 2x 7-pin and 1x 5-pin socket, with side marker lights, 2 separate LED reversing lamps at rear, 1 LED headlight inside

Tipping Body/Body Full Interior Welding
Aluminium tipping body, side walls 30 mm thick plank profiles (2-3 mm), 600 mm wide fully welded, floor 8 mm high-wear alloy (5383H34/HB 110), front wall 4 mm reinforced, straight design, rear wall as universal door in straight design with 2-leaf doors (2/3-1/3 split) and one grain chute (alternatively 1/2-1/2 split, each with a grain chute), aluminium round profile welded to seal the door gap on sides and bottom of rear doors, rear doors partially smooth-panelled in aluminium, universal door operation automatic pneumatic with separate lockable lever, rear canopy in ALU, pivotable, two hold-downs with rubber stops attached to tipping body frame at front wall

Hydraulic System Tipping Cylinder with Large Casing
Hydraulic cylinder front-mounted, max. working pressure 150 bar, manufacturer Edbro, approx. 2.5 m hydraulic hose and loose half 1", tipping angle approx. 48 degrees

Accessories
6 Parlok mudguards, complete spray flaps across entire vehicle width attached to underrun protection, ALU spare wheel holder, right side underrun protection foldable, large toolbox Type 860, approx. 3 m aluminium ladder, 3 centre-pivot ALU hoops raised by approx. 150 mm, additional central hoop mount to hold up to 2 hoops for larger loading width, roll tarp with central light strip and separate reinforcement at wear areas, approx. 660 g/m² quality with roll tarp system, circumferential rubber cord at rear tarp edge with two hooks at rear pivot hoop, catwalk on frame in chassis colour, tarp closure with quick-release fastener, rear tarp end welded-in rubber seal against water ingress, robust foldable underrun guard with two optional towing eyes left & right incl. safety pins, 2 'Clear-Pass' spray flaps at mudguards (EG standard), ALU grain funnel with plan sack mounted on frame side, holders for shovel, broom and scraper mounted above axles, etc.

+ €590 delivery charge

Available in 50m³ – 56m³
Load compartment length: 9,700 mm and 10,500 mm

* Price varies depending on equipment
