Dairesel tabla, mekanik tahrikli ve kurmalı, skalalı dairesel tabla, bölme aparatı, bölme tablası

WMW D 315 k

WMW rotary indexing table type D 315 k

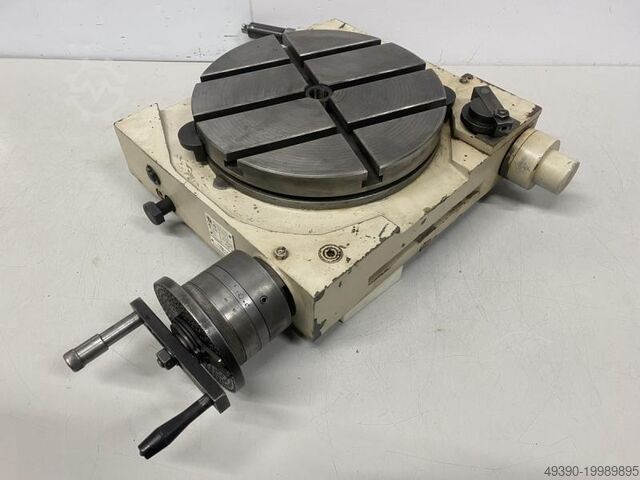

Rotary table with mechanical drive, with hand crank and scale
Indexing device, dividing head

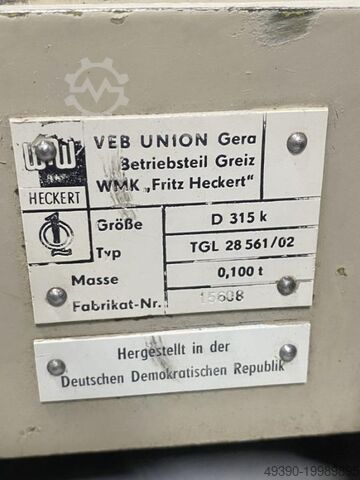

Serial No.: 16508
Table diameter: 315 mm
Table height: approx. 135 mm
Transmission ratio: 90 : 1

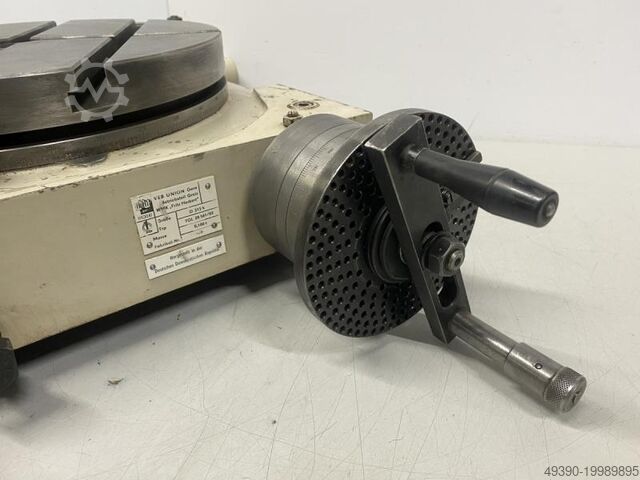

- Hand crank with index plate and sector arms

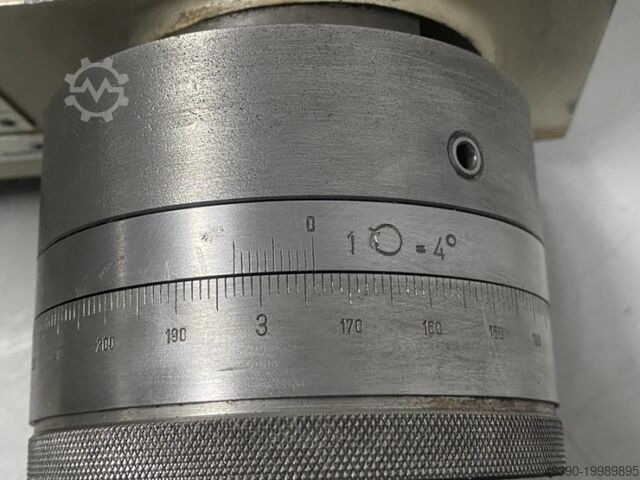

- Scale ring for reading at the crank
- Readable degree graduation on the rotary table
- Swiveling worm shaft for direct dividing
- Clamping via clamping screw
- 14 mm T-slots in the table plate
- Cardan drive
- Built-in index plate: 17-25-30-39-47-57
- Rotary table drive suitable for WMW HECKERT console milling machine type FU 315 E, possibly also for FU 400 E

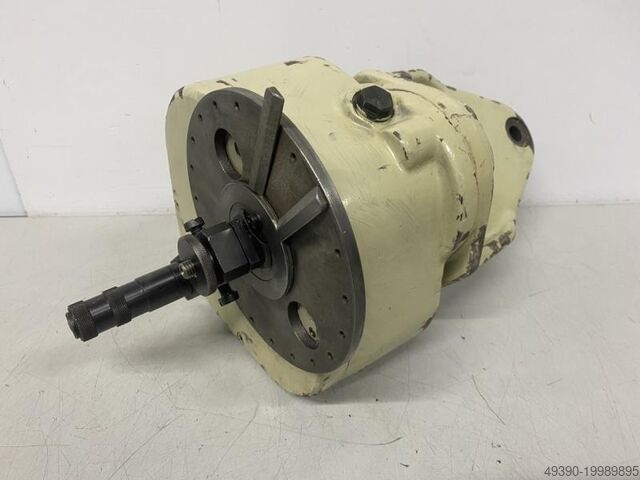

- Indexing device (index plate = 20) suitable for WMW HECKERT console milling machine type FU 315 E, possibly also for FU 400 E
Weight: 145 kg
Good condition
